673.114.018.36

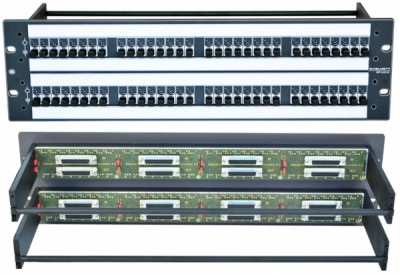

USF 2x32 AV 3/3 D25T ffcs

Universal Connecting Patch Panel

  • 64 channels, 3-pole
  • 19", 3 U, front panel anthracite with white print
  • 8 D-Sub 25 pole connector modules female-female
  • with Tascam pinout
  • 64 normalling plugs black
  • 4 designation strips
  • 2 cable bar
