Matrix Board 20x20, type 321 connecting 20 to 20 signals 1-pole/multipolefrontpanel grey with black print and vertical stripessolder lugs, 3mmDimensions: 99x99x32 mm 673.110.022.07GKV 20x20 321 LA 99

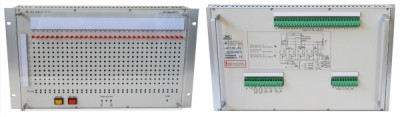

Tripping matrix to Generator Protection Systems, 30 Input lines (vertical)30 Input discontinuity "E"30 connecting plugs GSS-621/15 rt, red, 674.310.180.0230 Input signal tap after input tap discontinuity "Ea"30 connecting plugs GSS-621/15 rt redfor input tap discontinuity10 Output lines (horizontal)1-pole interconnection with diode plugsintegrated test unit for diode plugs "D"Pin parkInput- and Output signalling by LED indication (red)Storing of LED indication by solid state memory "L"group memory for storing of tripping signalsLED-Reset push buttonLED-Test push buttonPower supply 24 VDC +/- 20%Power supply monitoring19", 6 U rack, front panel grey A281dorsal screw mount connectors, max. 4mm2 wireAcryl front cover, opening to the right "P" 674.115.420.30GKV 10x30 621 AM EEaLDP 24VDC
Signal distributor type 621 4 rows (inputs), 48 columns (outputs)0 to max 240 VAC/VDC, max 16AAcrylglas cover to be opened horizontallyincluding security keycabled onto 2 pcs RP300 54-pole connectors (1 female, 1 male)including 2 counter-connectors RP300 54-pole (1 male, 1 female)1 row as pin park for 48 plugs,including 4 designation strips (2 front, 2 rear)19", 4RU rack, front panel grey 674.115.232.00GKV 4x48 621 SS
Tripping Matrix (7UW50) 220VDC / 16A Tripping Matrix 220 VDC / 16 A28 inputs (2x14 columns)10 outputs (2x10 lines)2 input breaksLED indicationScrew mount connectorsFlush MountingDimensions: 225 mm / 255 mm / 231 mm (W/H/D) 674.114.913.02GKV 2x11x14 621 SS K
