45 Input lines (vertical)45 Input discontinuity45 connecting plugs GSS-621/15 rt, red, 674.310.180.0215 Output lines (horizontal)1-pole interconnection with diode plugs2 rows as pin park for 90 plugsPower supply 240 VDC19", 4 RU, front panel greywith plexiglas protection to be opened to the bottomscrew type terminals2 designation strips

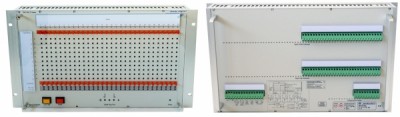

60 Input lines (vertical)60 Input discontinuity "E"60 connecting plugs GSS-621/15 rt, red, 674.310.180.0220 Output lines (horizontal)1-pole interconnection with diode plugsintegrated test unit for diode plugs "D"Pin parkInput- and Output signalling by LED indication (red) "L"Storing of LED indication by solid state memoryGroup memory for storing of tripping signalsLED-Reset push button with remote accessLED-Test push button remote accessPower supply 250 VDC +/- 20%Power supply monitoring19", 6U rack, front panel grey A281dorsal screw mount connectors, max. 4mm2 wireAcryl front cover, opening to the right "P"

32 Input lines (vertical)32 Input discontinuity "E"32 connecting plugs GSS-621/15 rt, red, 674.310.180.0215 Output lines (horizontal)1-pole interconnection with diode plugsintegrated test unit for diode plugs "D"Pin parkInput- and Output signalling by LED indication (red)Storing of LED indication by latching relays "L"Group memory for storing of outgoing tripping signalsLED-Reset push buttonLED-Test push buttonPower supply 250 VDC +/- 20%Power supply monitoring19", 5U rack, front panel grey A281dorsal screw mount connectors, max. 4mm2 wireAcryl front cover, opening to the right "P"

4 rows (inputs), 48 columns (outputs)0 to max 240 VAC/VDC, max 16AAcrylglas cover to be opened horizontallyincluding security keycabled onto 2 pcs RP300 54-pole connectors (1 female, 1 male)including 2 counter-connectors RP300 54-pole (1 male, 1 female)1 row as pin park for 48 plugs,including 4 designation strips (2 front, 2 rear)19", 4RU rack, front panel grey
